ROTATIONAL TRANSLATION STAGES

These rotary translation stages use flexure springs to constrain motion to highly repeatable angular motions in one or more degrees of freedom. They can also be combined with linear translation stages to enable linear plus rotational control. Contact us for more details on designing and building flexure devices.

IMPORTANT NOTE: CAD files and reference documents are provided for informational purposes only. CAD file downloads are restricted to those logged into the site. If you don't already have an account, creating an account is fast and free. Check out our privacy policy and terms & conditions.

Virtual-axis Rotary Translation Stage

This rotary stage produces a near pure rotation about the center of the 5 x 5 block. Note that the two leaf springs would continue to meet at the center of the 5 x 5 block, thereby producing a virtual axis. Adding two more springs will create a stiffer, over-constrained design, but there will be less shift in the virtual axis.

virtual-axis-rotary-stagezoom-icon Zoom

 cad-icon STEP File (Restricted - Login to Access)
 bom-icon Bill of Materials (View or Download)
 video-icon Product Video
 Price each ................ RFQ

Cross-hinge Rotary Translation Stage

This one-axis rotational stage features 15° of range and sub-arcsecond resolution. It was designed to mount on a coarse adjust Thorlabs stage that has 15° resolution. One is currently being used for investigating and characterizing angular effects of artifacts measured in a Zeiss Metrotom X-ray system.

cross-hinge-rotary-translator-v1zoom-icon Zoom

 cad-icon STEP File (Restricted - Login to Access)
 bom-icon Bill of Materials (View or Download)
 video-icon Product Video
 Price each ................ RFQ

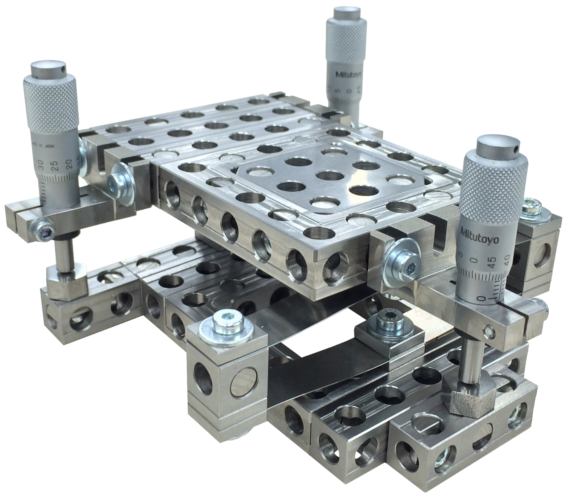

Tip-Tilt-Z Translation Stage

This adjustment stage provides two angular degrees of freedom - pitch and yaw about the vertical axis - with ranges more than ±10° and a linear degree of freedom (vertical displacement) with a range of a few millimeters. It uses flexures to produce exact constraint, resulting in a robust and rigid structure with large range.


tip-tilt-z-translatorzoom-icon Zoom

 cad-icon STEP File (Restricted - Login to Access)
 bom-icon Bill of Materials (View or Download)
 Price each ................ RFQ
